温控面板|ⅠTemperature control panel

电热执行器|ⅠElectric actuator

单盘管 缓冲水箱|ⅠCistern

地暖混水中心| Floor heating mixed water center

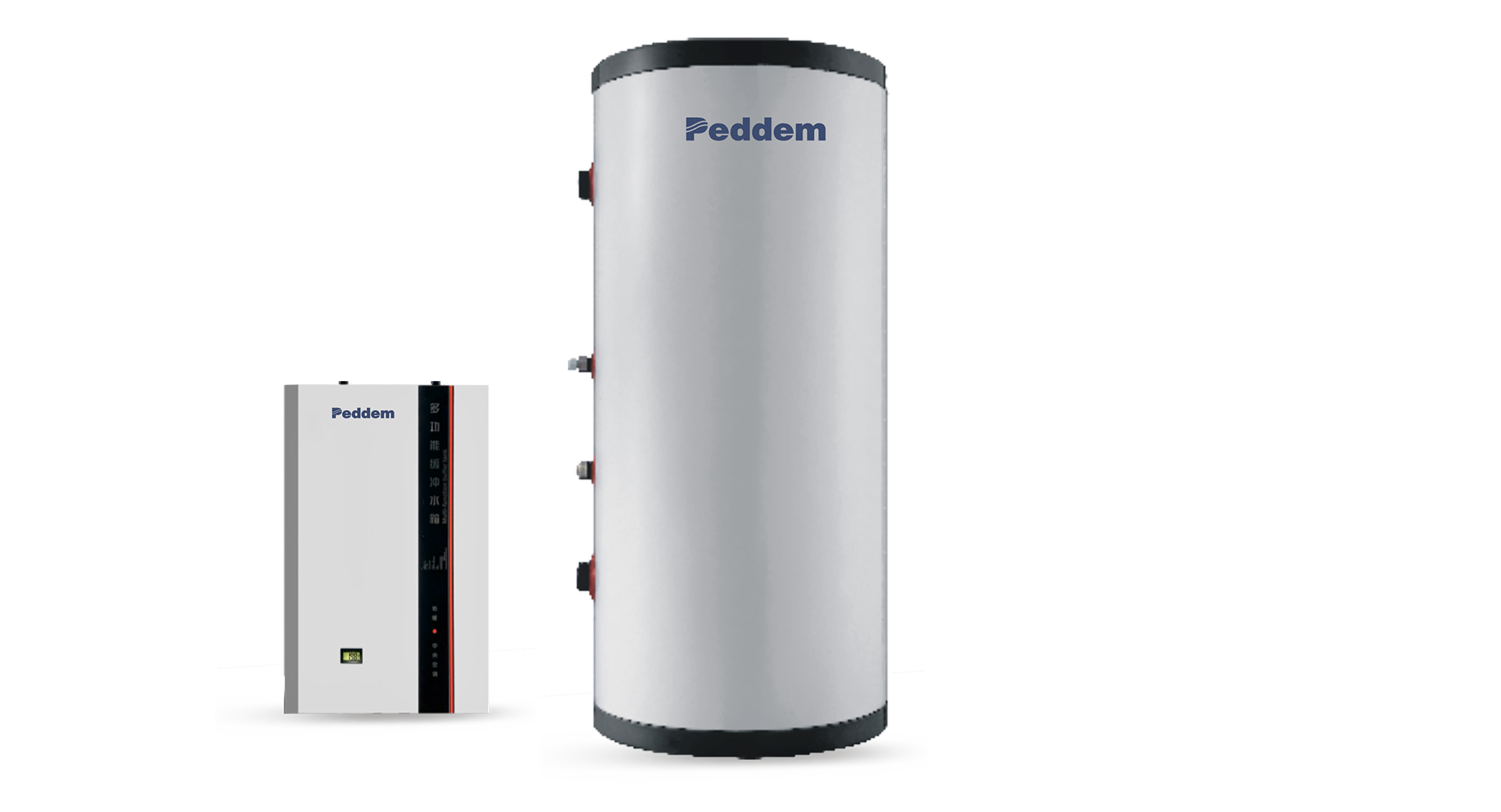

缓冲水箱

产品特点 Product features:

1、空调或采暖系统中,本水箱可储存冷量或热量,提高系统的稳定性和使用舒适度; 2、配合多冷源或者热源使用,防止主机频繁启动,延长机器寿命,降低能耗; 3、自动排除系统空气,避免主机高压保护,减少水泵叶轮气蚀现象的产生,有效保护水泵;

4、防止系统堵塞,排污更方便,更彻底; 5、标准一进一出单循环,两进两出双循环,还可根据实际需求定制多组循环丝口或者法兰口; 6、增加50升和80升方形壁挂缓冲水箱,美观,不占地方。

1, air conditioning or heating system, the water tank can store cold or heat, improve the stability of the system and use comfort; 2. Use with multiple cold or heat sources to prevent frequent start of the host, extend the life of the machine, and reduce energy consumption; 3, automatically exclud

4, prevent system blockage, sewage more convenient, more thorough; 5, the standard one in one out single cycle, two in two out double cycle, can also be customized according to the actual needs of multiple groups of circular wire or flange; 6, add 50 liters and 80 liters square wall hanging buffer

缓冲水箱

规格

  圆形     规 格     尺 寸     保温厚度     内胆厚度     外壳厚度     循环口     排气口
  60L     单循环不锈钢内胆     Φ470*680     50mm     1.0mm     0.5mm     DN40     DN15
  双循环不锈钢内胆     Φ470*680     50mm     1.0mm     0.5mm     DN40     DN15
  100L     单循环不锈钢内胆     Φ470*980     50mm     1.0mm     0.5mm     DN40     DN15
  双循环不锈钢内胆     Φ470*980     50mm     1.0mm     0.5mm     DN40     DN15
  150L     Φ470*1480     50mm     1.2mm     0.5mm     DN40     DN15
  200L     Φ520*1540     50mm     1.2mm     0.5mm     DN40     DN15
  201L     Φ560*1780     50mm     1.5mm     0.5mm     DN50     DN15
  202L     Φ700*1880     50mm     1. 8mm     0.5mm     DN50     DN15
  方形壁挂式
搪瓷内胆
  50L     单循环     440*260*720     50mm     1.8mm     1. 0mm     DN32     DN15
  双循环     440*260*720     50mm     1.8mm     1.0mm     DN32
80L 双循环 520*296*846 50mm 1.8mm 1.0mm DN32
