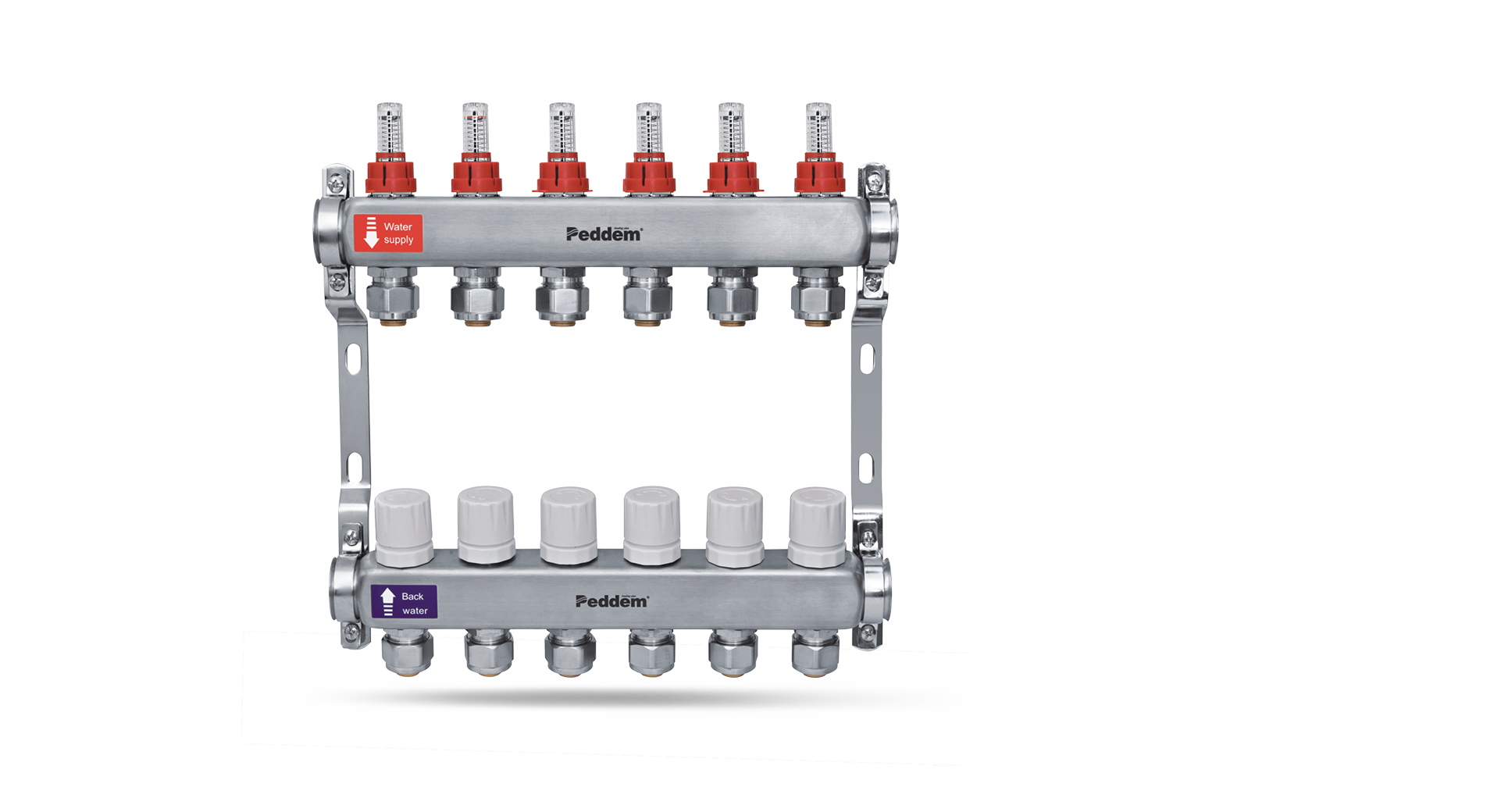

PDM-1103 DN25不锈钢带流量计分水器

设计原理 / Design principle

可视流量计,大通径主管设计 双密封圈设计,保障密封垫永不脱落 主管体及进出水锁帽均采用SUS304不锈钢 防污阀芯金属、泥沙拒之门管外

Visual flowmeter, large diameter main design Double sealing ring design, to ensure that the sealing pad never falls off The main body and the inlet and outlet water lock cap are made of SUS304 stainless steel Antifouling spool metal, sand shut out the door pipe

PDM-1103 DN25不锈钢带流量计分水器

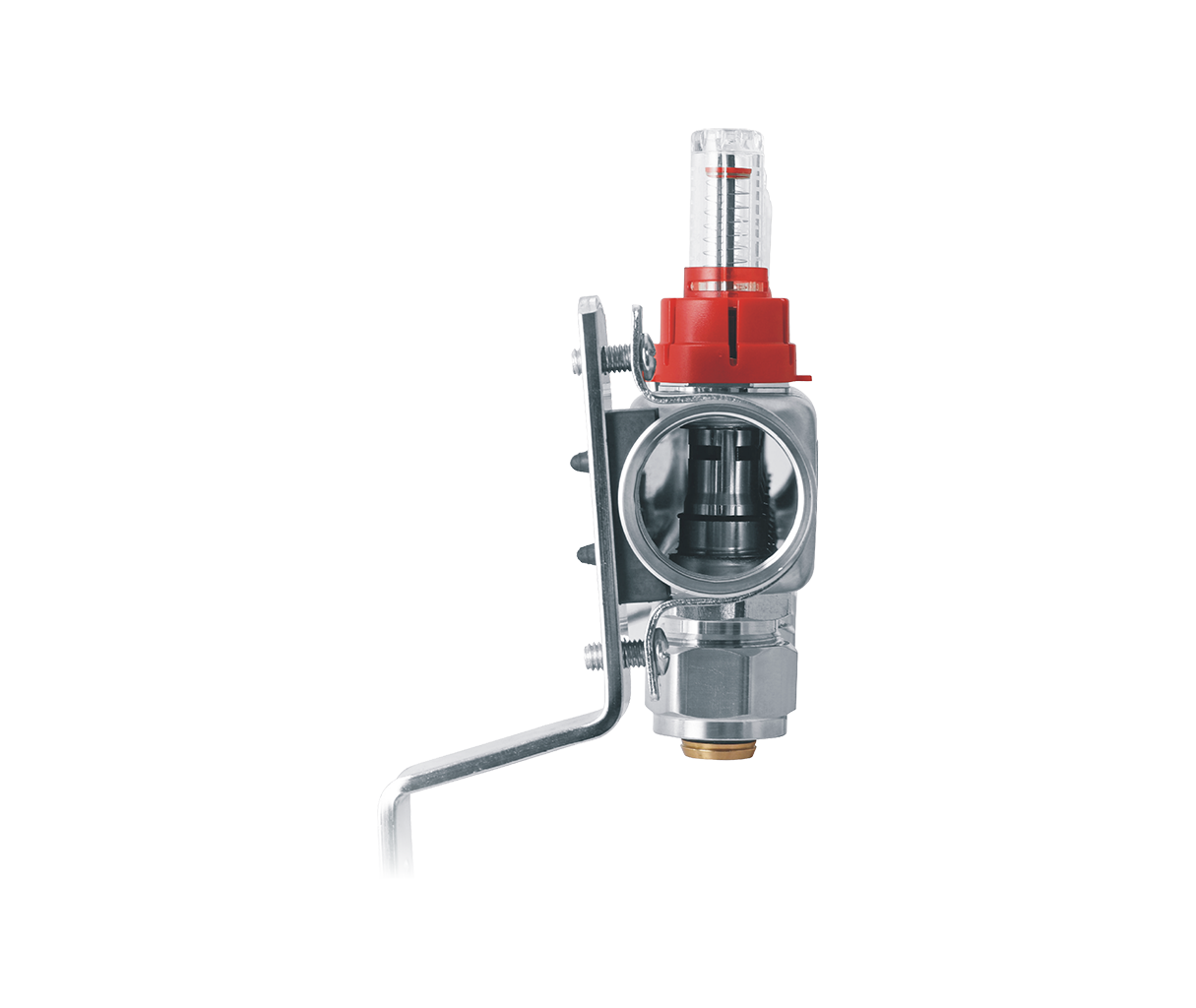

精密阀芯 / Precision spool

弹簧阀芯内部采用进口EPDM双道密封圈,测试性能高达15万次以上。

阀芯底部轴夹设计,保障密封垫永不脱落。

高位阀芯有效控制了泥沙污垢等杂质进入管道,增加管道寿命,散热持续性更好,升温更快。

The spring valve core adopts imported EPDM double seal ring, and the test performance is more than 150,000 times.

Spool bottom shaft clamp design to ensure that the gasket never falls off.

The high spool effectively controls the impurities such as mud and dirt into the pipeline, increasing the life of the pipeline, better heat dissipation and faster heating.

人体工程学手轮 / Ergonomic hand wheel

符合人体工程学手轮,使用时手感更轻,更舒适 Ergonomic hand wheel, feel lighter and more comfortable when using

主管体及进出水锁帽,均采用SUS304不锈钢 The main body and the inlet and outlet water lock cap are made of SUS304 stainless steel

不锈钢分集水器:不锈钢材质强度是铜的3倍,能经受捶击及热账冷缩,不漏水不爆裂,环保材质耐腐蚀使用寿命更长,大通径流量水阻更小 Stainless steel water collector: stainless steel material strength is 3 times that of copper, can withstand hammering and heat account shrinkage, no water leakage, no burst, environmental protection material corrosion resistance longer

双密封圈设计,保障密封垫永不脱落 Double sealing ring design, to ensure that the sealing pad never falls off

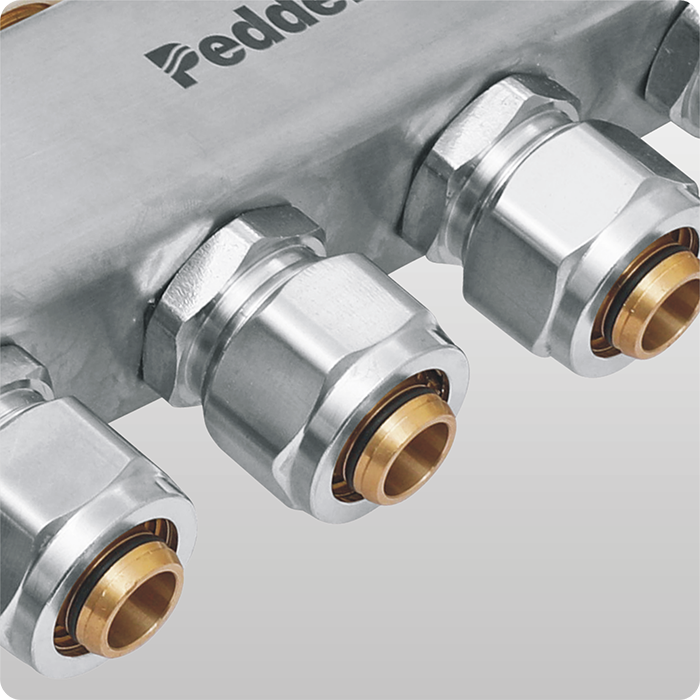

加厚精铜适配器体,高品质密封圈,确保部件连接紧密 Thickened copper adapter body, high quality sealing ring, to ensure that the components are tightly connected

规格

适用介质 水、非腐蚀性液体、饱和蒸汽
最大工作压力 1.0MPa
适用温度 0℃ ~100℃
主管接口 DN25内螺纹
支管接口 16-2.0/20-2.0
本体材质 SUS 304
