温控面板|ⅠTemperature control panel

电热执行器|ⅠElectric actuator

单盘管 缓冲水箱|ⅠCistern

地暖混水中心| Floor heating mixed water center

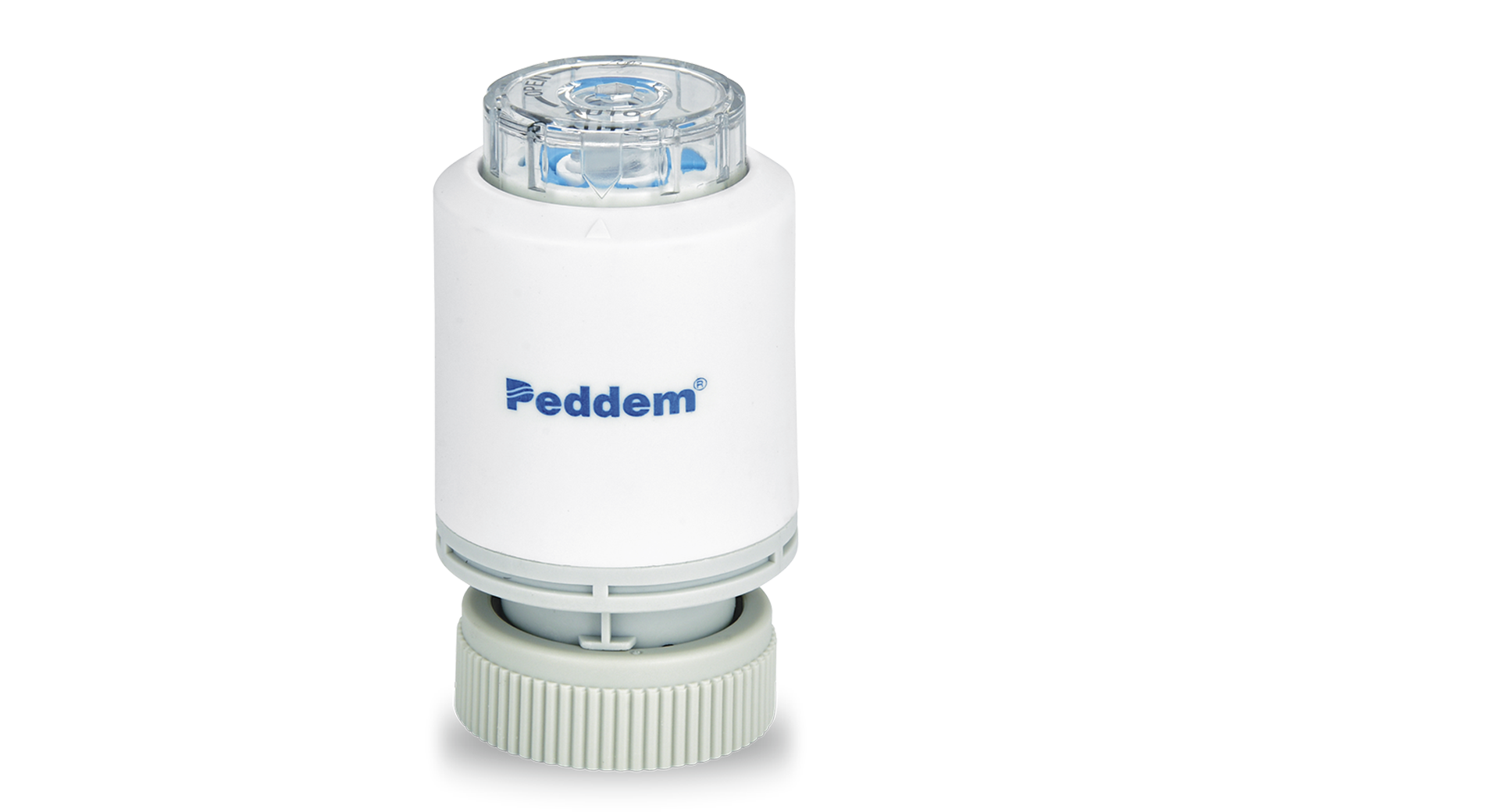

PDM-1201 手自一体130N

每年可节省20%能耗,可让您家中的每个房间都获得高质量的热舒 适度,同时大大降低能耗成本。 Energy savings of up to 20% per year and high quality thermal comfort in every room of your home Moderate, while greatly reducing energy costs.

供暖成本为建筑总能耗的80%左右,安装恒温阀和自动调节温包可 降低20%的能耗成本。 The heating cost is about 80% of the total energy consumption of the building, and the installation of thermostatic valves and automatic temperature control packages can be Reduce energy costs by 20%.

该系统可在现有建筑以及新建建筑内安装,适用范围广、面积大。 The system can be installed in existing buildings and new buildings, with a wide range of application and large area.

功能特点 Functional characteristics 1.专业测试生产安装,稳定可靠,一致性好 2.PTC加热,石蜡推动行程。 3.螺母连接,安装拆卸方便,通用性强。 4.采用增强尼龙阻燃材料。 5.高防护等级,杜绝漏水漏电。 1. Professional test production and installation, stable and reliable, good consistency 2.PTC heating, paraffin drive stroke. 3. Nut connection, easy installation and

PDM-1201 手自一体130N

规格

技术参数
工作电压 230V AC50/60Hz
功率 2W
启动电源 Max 300mA
开启行程  Min 4mm
储存温度 -25℃-60℃
导线长度  600/800mm
链接螺纹 M30x1.5
防护等级 IP44/IP54
执行标准 En60730
