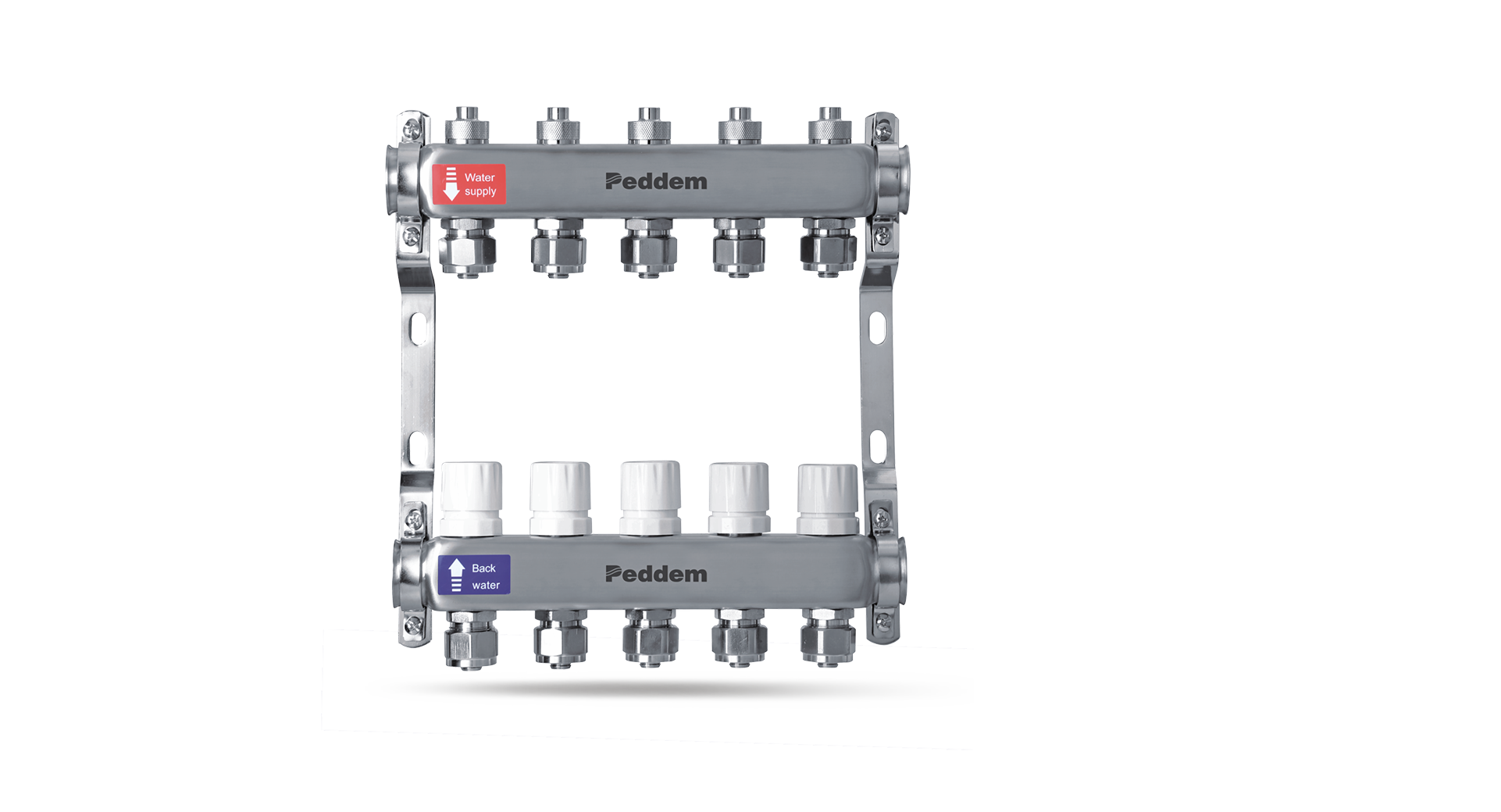

PDM-1105 DN25智能不锈钢分水器
环保型 304 不锈钢分集水器，采用食用级环保材料，不锈钢杠体水阻小，通径流量更大。它们采用独特的紧凑设计，使得体形小巧，特别适合于狭窄的空间。 分集水器端的下部均为支管接口，使用不同尺寸的分集水器接头，可连接各种地暖管道。
Environmental protection type 304 stainless steel water collector, the use of edible grade environmental protection materials, stainless steel bar body water resistance is small, more runoff. Their unique compact design makes them small and suitable for tight Spaces. The lower part of the diverter
.PNG)
.PNG)

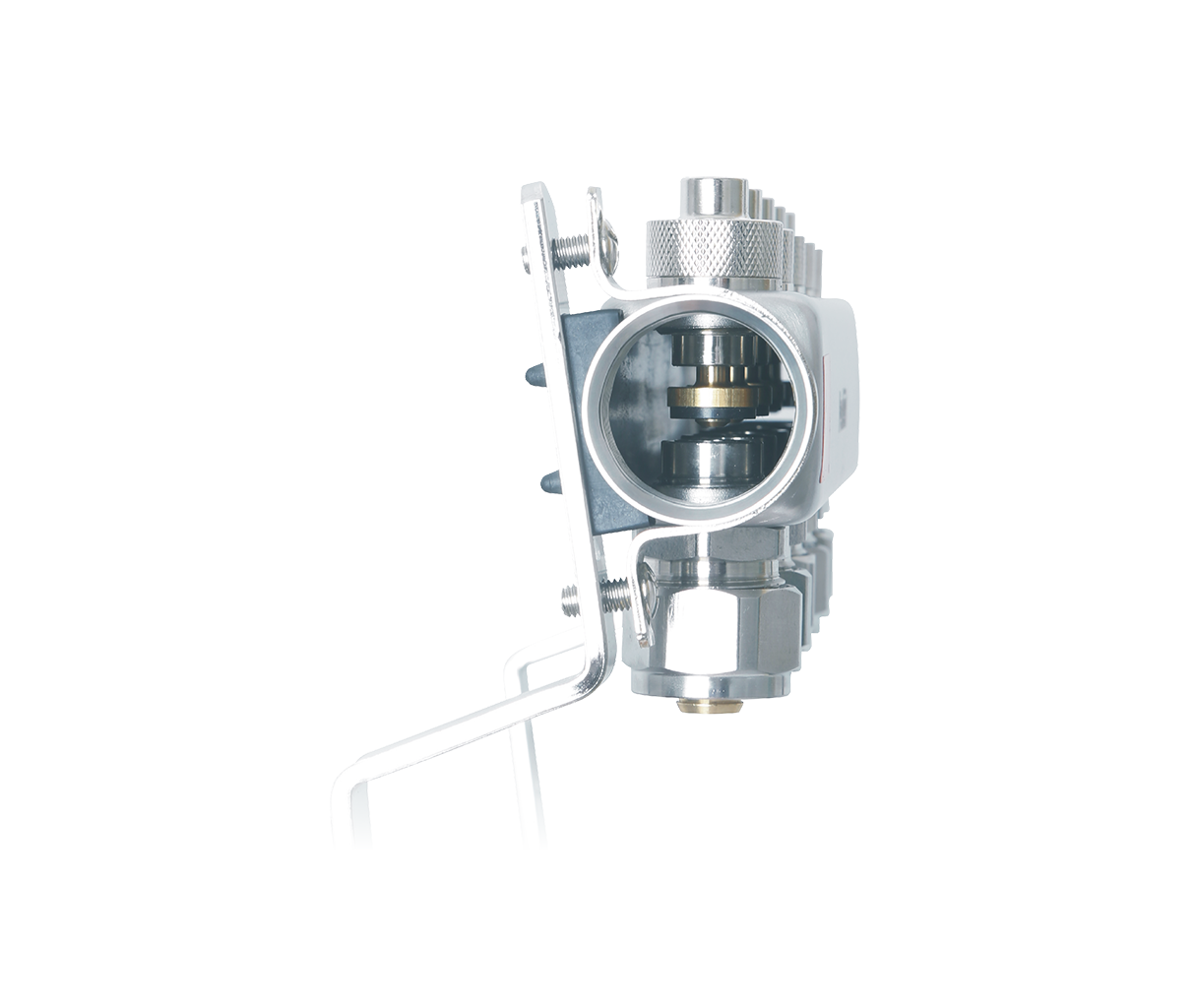

精密阀芯 / Precision spool
弹簧阀芯内部采用进口EPDM双道密封圈，测试性能高达15万次以上。
阀芯底部轴夹设计，保障密封垫永不脱落。
高位阀芯有效控制了泥沙污垢等杂质进入管道，增加管道寿命，散热持续性更好，升温更快。
The spring valve core adopts imported EPDM double seal ring, and the test performance is more than 150,000 times.
Spool bottom shaft clamp design to ensure that the gasket never falls off.
The high spool effectively controls the impurities such as mud and dirt into the pipeline, increasing the life of the pipeline, better heat dissipation and faster heating.
.PNG)

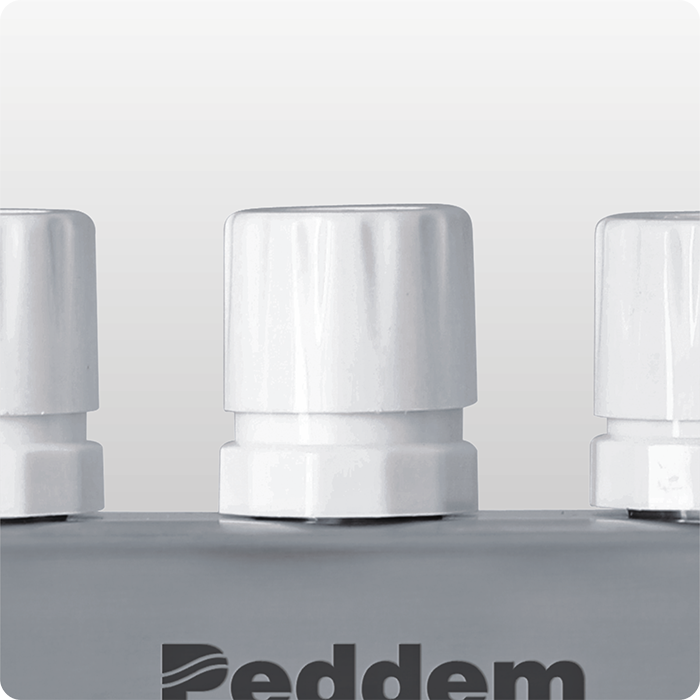

人体工程学手轮 / Ergonomic hand wheel
符合人体工程学手轮，使用时手感更轻，更舒适 Ergonomic hand wheel, feel lighter and more comfortable when using
.PNG)

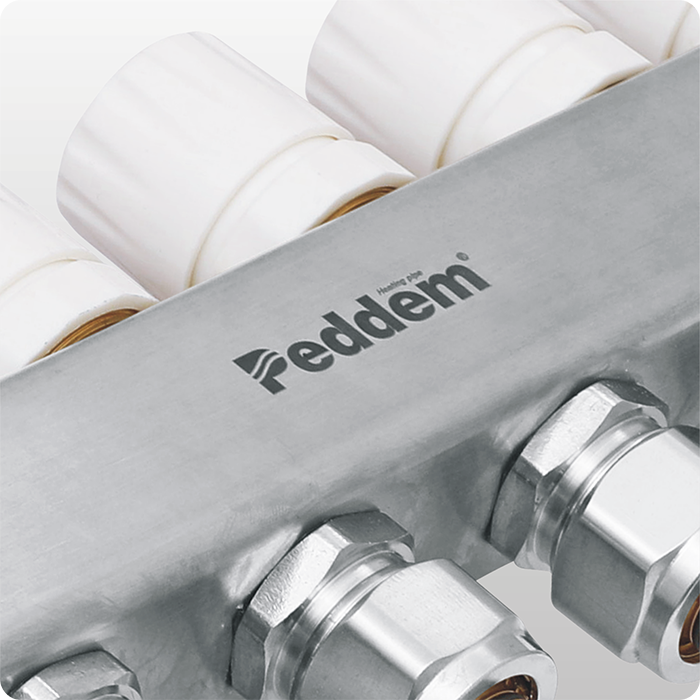

主管体及进出水锁帽，均采用SUS304不锈钢
The main body and the inlet and outlet water lock cap are made of SUS304 stainless steel
不锈钢分集水器：不锈钢材质强度是铜的3倍，能经受捶击及热账冷缩，不漏水不爆裂，环保材质耐腐蚀使用寿命更长，大通径流量水阻更小 Stainless steel water collector: stainless steel material strength is 3 times that of copper, can withstand hammering and heat account shrinkage, no water leakage, no burst, environmental protection material corrosion resistance longer
.PNG)

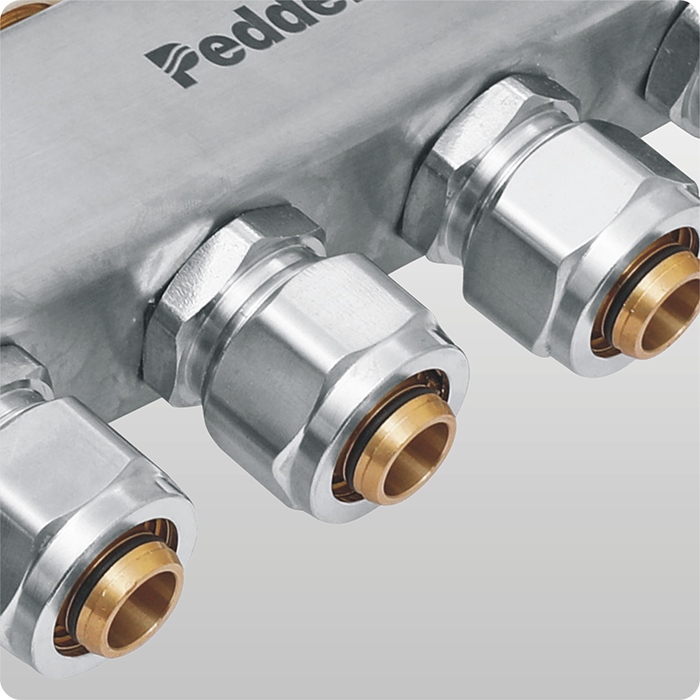

双密封圈设计，保障密封垫永不脱落
Double sealing ring design, to ensure that the sealing pad never falls off
加厚精铜适配器体，高品质密封圈，确保部件连接紧密 Thickened copper adapter body, high quality sealing ring, to ensure that the components are tightly connected
规格
| 适用介质 | 水、非腐蚀性液体、饱和蒸汽 |
| 最大工作压力 | 1.0MPa |
| 适用温度 | 0℃ ~100℃ |
| 主管接口 | DN25内螺纹 |
| 支管接口 | 16-2.0/20-2.0 |
| 本体材质 | SUS 304 |
