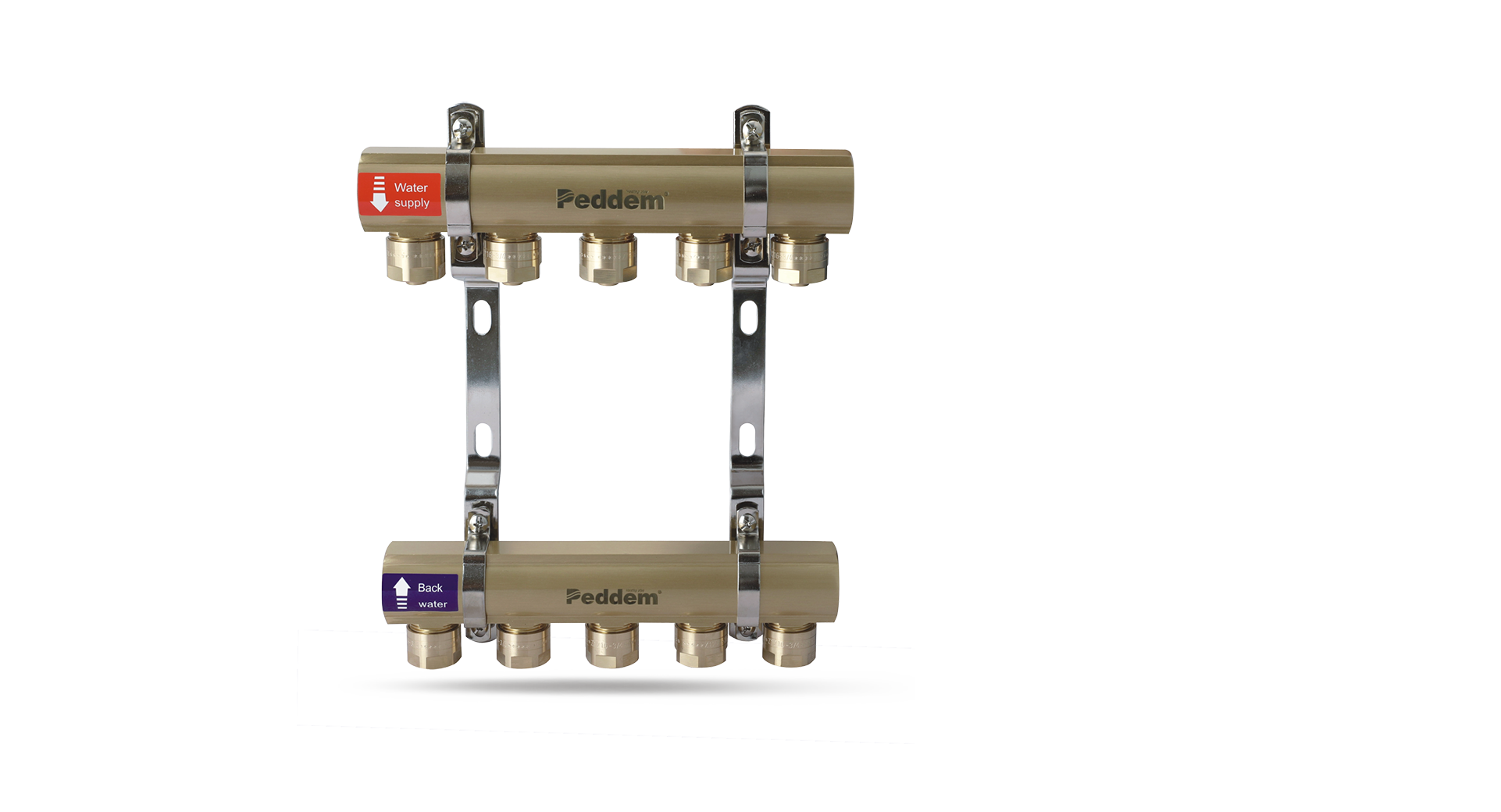

PDM-1102 DN25散热片分水器
应用领域 / Application field
低温辐射地暖系统、生活饮用水系统、散热器连接系统。
Low temperature radiant floor heating system, drinking water system, radiator connection system.
.PNG)
.PNG)
整体型材分集水器采用欧标CW617N优质无铅铜，铜本色抗氧化镀膜处理防腐蚀。密度高，稳定性好，主管与支管整体无缝彻底“绝漏”。壁厚达到3.5mm更安全耐用。
The whole profile water collector adopts European standard CW617N high quality lead-free copper, copper color anti-oxidation coating treatment anti-corrosion. High density, good stability, the main and branch pipe as a whole seamless and complete "no leakage". Wall thickness up to 3.5mm is safer and more durable.

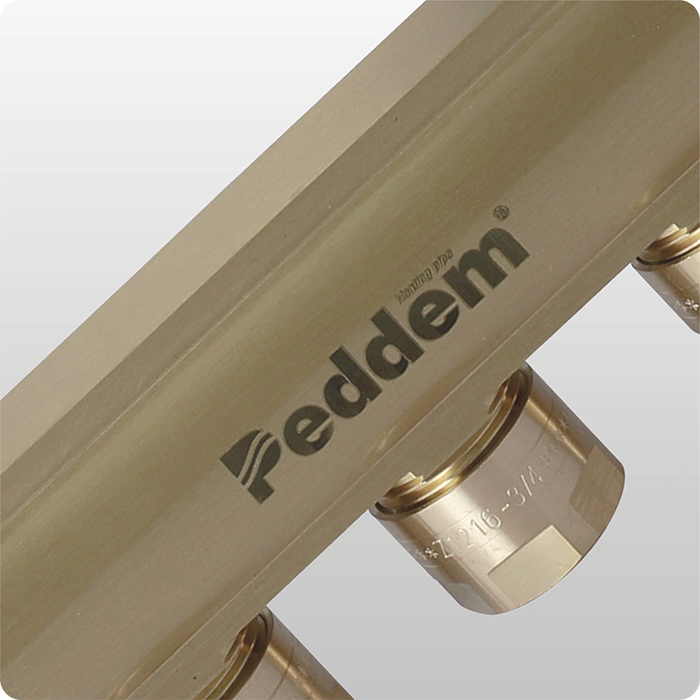

产品表面耐氧化 / The product surface is resistant to oxidation
优质黄铜加工，表面经过多道工序加工，耐腐处理经久耐用 High quality brass processing, the surface through multiple processes processing, corrosion resistant treatment durable

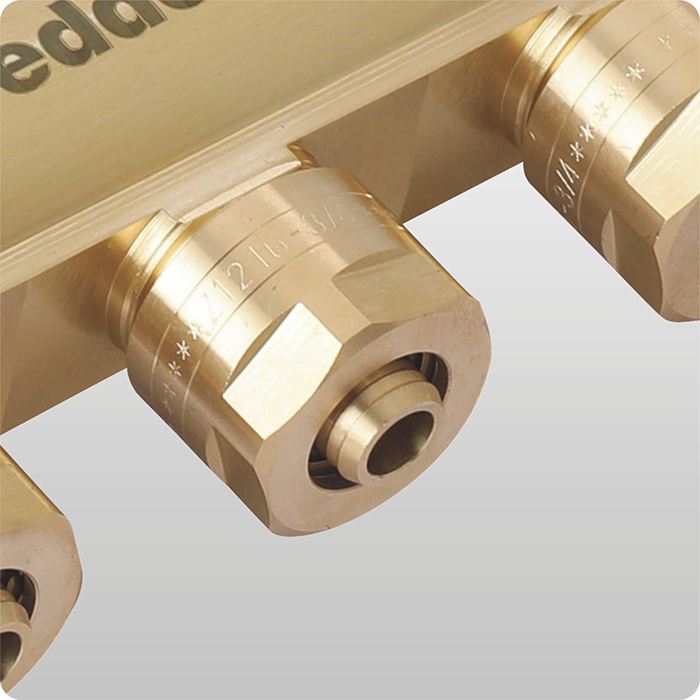

六角接头，表面抛光清漆工艺处理 / Hexagonal joint, surface polishing varnish process
加厚精铜适配器体，高品质密封圈，确保部件连接紧密 Thickened copper adapter body, high quality sealing ring, to ensure that the components are tightly connected
规格
| 适用介质 | 水、非腐蚀性液体、饱和蒸汽 |
| 最大工作压力 | 1.0MPa |
| 适用温度 | 0℃ ~100℃ |
| 主管接口 | DN25内螺纹 |
| 支管接口 | 16-2.0/20-2.0 |
| 本体材质 | CW617N |
