温控面板|ⅠTemperature control panel

电热执行器|ⅠElectric actuator

单盘管 缓冲水箱|ⅠCistern

地暖混水中心| Floor heating mixed water center

PEXb-AL 铝塑复合管

加热速度更快,采暖运行费用较低 不添加任何化学添加剂,在欧洲国家广泛用于直饮水管材

The heating speed is faster and the heating operation cost is lower Without adding any chemical additives, it is widely used in direct drinking water pipes in European countries

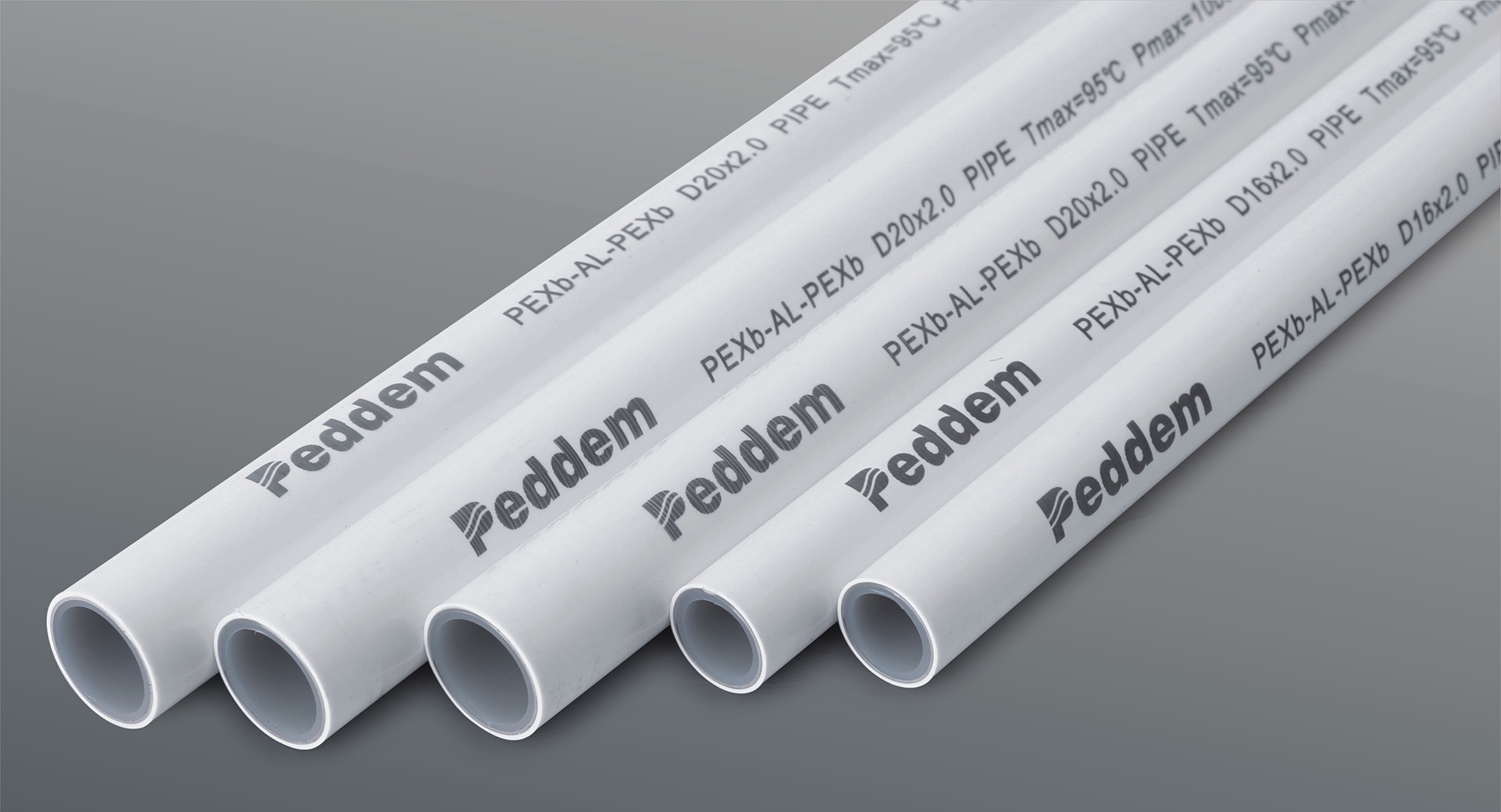

PEXb-AL 铝塑复合管

管材采用高密度聚乙烯(HDPE)材料制成,具有更高的耐高温性能和抗压强度。经过双交联工艺的PEXb复合管可以在95℃的温度下长期使用,使用寿命可以达到50年以上的保证,特别适合应用于高温条件的散热器采暖(70℃以上)系统的连接。

The pipe is made of high density polyethylene (HDPE) material, which has higher high temperature resistance and compressive strength. After the double cross-linking process, the PEXb composite pipe can be used for a long time at a temperature of 95 ° C, and the service life can reach more than 50 years, which is especially suitable for the connection of radiator heating (above 70 ° C) systems under high temperature conditions.

规格

编码/Part no. 规格/Specification(mm) 包装/Package(m)
PDM-1909 16 x 2.0 200
PDM-1910 20 x 2.0 100
PDM-1911 25 x 2.5 100

其他特殊规格可根据客户要求定制
